AEV JK Premium SC 3.5" Lift Kit (2 Door)

$3,565.00
In Stock

Quantity:

Calculate Shipping


EV JK Wrangler 3.5" Premium SC suspension

AEV’s DualSport Suspension Systems have taken off-road suspension engineering to the next level. At AEV, suspension development is about more than just adding lift height, articulation, or flashy-looking components. It’s about bringing OE-level suspension engineering to the aftermarket to create a true do-anything “dualsport” suspension – one that is both extremely capable off-road, while offering unparalleled on-road performance and handling.


To achieve this, AEV relied on factory engineering methodology. We started with the JK’s control-arms, track-arms and steering. The geometry of each component was optimized to accommodate the new lifted posture of the JK. It may surprise people to learn that proper geometry is where AEV’s Dualsport Suspensions get much of their tremendous cornering and braking characteristics. The fact is, when the geometry is right, the springs and shocks don’t have to compensate for poor performance in these areas.

Once the geometry was correct, we turned our attention to the springs, again relying on OE methods, which in the case of springs means frequency tuning.  Frequency-tuned coil springs share harmonious oscillation characteristics that allow them to work as a matched set, front and rear.  The benefit is that they help to keep the JK balanced and in contact with the road, even when driven at high speed over rough surfaces.

After the springs were tuned, the next step is shock tuning. Rather than use an off-the-shelf shock tune, we partner with the engineers at Bilstein to develop a proprietary tune matched to our unique suspension. Together we spent days at a proving grounds facility testing numerous valving combinations in an array of simulated driving conditions. Thanks to the previous optimization of AEV’s geometry and coil springs, it allows us to tune the shocks with a focus on damping suspension movement – rather than on trying to mask unwanted handling problems resulting from poor geometry or spring tuning.

Overall, no matter which Dualsport Suspension System you choose, no matter where you drive it or how you load it, you can count on your Dualsport-equipped JK to remain comfortable, balanced and ready to explore.

Key Features:

Expedition-Ready / Daily-Driven Practical. More so than any of its predecessors, the JK Wrangler is not just a trail-mastering off-road specialist, it's a truly "street able" on-road transport too. The AEV DualSport enhances the JK to raise its performance in both arenas.

Tuned Vehicle Dynamics. The DualSport system has been thoroughly tuned for impeccable behavior in every situation you might put it in - and especially the ones you didn't intend to.

Complete. AEV DualSport JK systems are truly stand-alone packages that include everything needed to elevate your JK properly, including shocks.

Application: 2007+ JK Wrangler

Made In: United States

Recommended Tyre Size: 3.5" suspension lift can work with up to 37" tyres

The DualSport SC Suspension Kit builds on the DualSport ST Kit with the addition of AEV's High Steering Kit, ProCal Module and Jack Base. Our High Steering Kit improves steering response while the ProCal Module allows invaluable recalibration capability for larger tires, gearing and more.

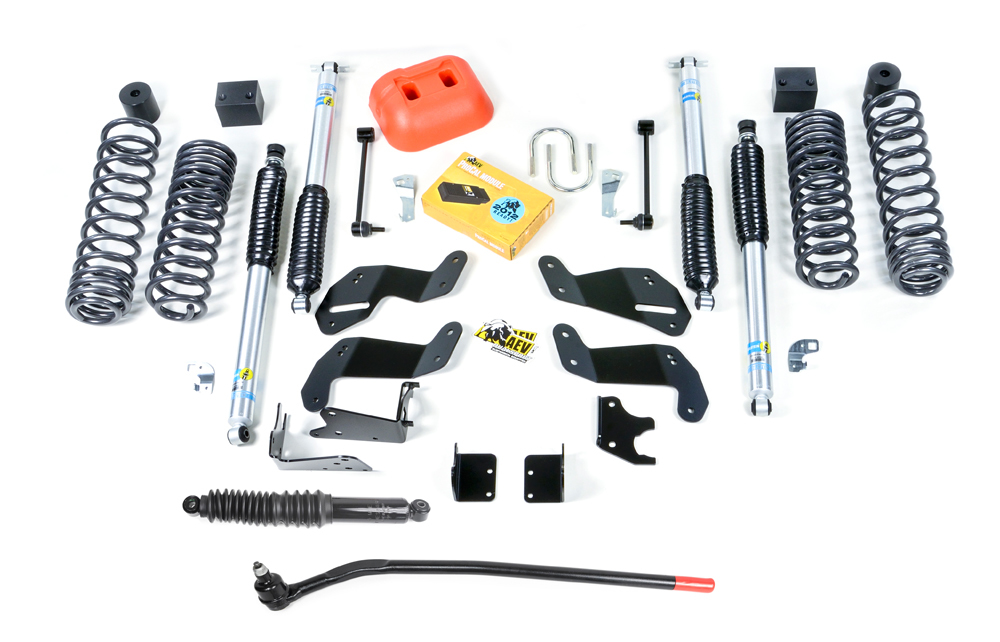

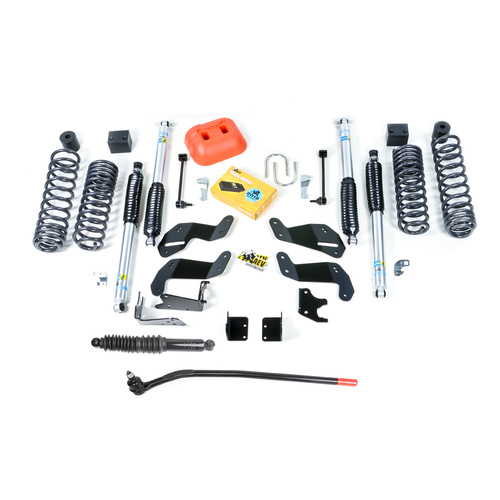

Kit Contents:

  • Frequency-tuned, progressive rate springs
  • Bilstein 5100 shocks
  • Bump-stop spacers
  • Rear stabilizer end links
  • Rear track-bar tower
  • Custom bent OE rear track bar
  • Brake line drop brackets
  • Geometry Correction Front Control Arm Brackets
  • AEV High Steer Kit
  • Heavy-duty steering damper
  • ProCal Module
  • Jack Base

Aftermarket Wheels – these are recommended both for adequate width to mount large tires and decreased backspacing for chassis & steering clearance.

NOTE: JK X-model factory 16-inch wheels will not clear the new drag-link included in all Premium Suspension Systems. Any AEV JK wheel will solve the clearance issue.

NOTE2: Wheels with extremely negative offset may negatively affect ESP (stability control) function.

• 2012+ Exhaust Clearance: Installation on a 2012+ JK requires a minor exhaust system modification to clear the driveshaft, which can be done at your local exhaust shop.
• 2007-2011 Driveshaft: For installation on a 2007-2011 automatic trans JK we recommend a narrower drive shaft
• Diesel Compatibility: To install on a 2011+ Diesel JK with a Diesel Particulate Filter (DPF), you will also need AEV's custom DPF tube.



Installation Instructions

(Click to view)

SKU AEVN0232600AA
Brand AEV
Shipping Weight 76.0000kg
Shipping Cubic 0.202307000m3
