Drive Shaft JL 1350 Rear 47 inch M200

1195mm (47")

$1,485.00
Sold Out

Quantity:

Calculate Shipping

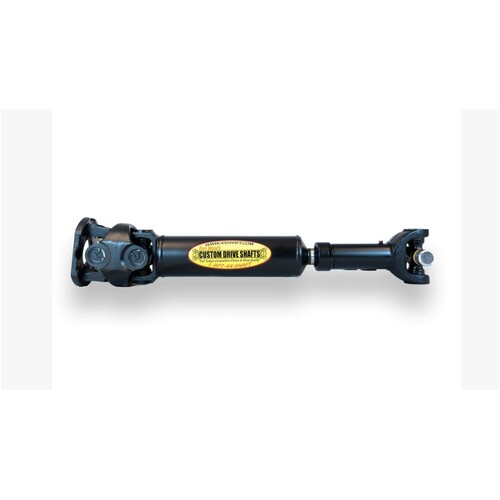

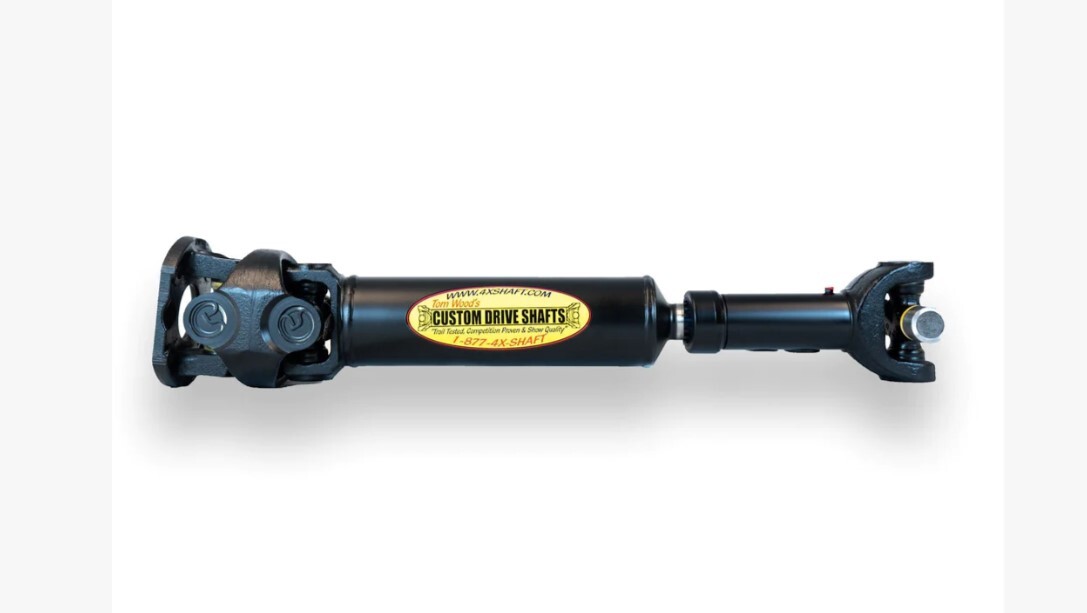

Drive Shaft JL 1350 Rear 47 inch Dana 35

Jeep JL drive shaft noise. . . it is a common problem and is inevitable on nearly all lifted Jeep JL Wranglers. It comes down to the design. The stock drive shafts use Rzeppa CV joints that were designed only to work in stock Jeeps. Just a few inches of lift is enough to cause these CV joints to fail (watch the video below). JL drive shaft rebuild kits just don't cut it. That is why almost all JL drive shaft replacements are upgraded to a double cardan design (a double cardan is also commonly called a cv). This shaft will handle the angles that your stock drive shaft can not. The double cardan drive shaft is a time tested design that has proven itself in thousands of other Jeeps.

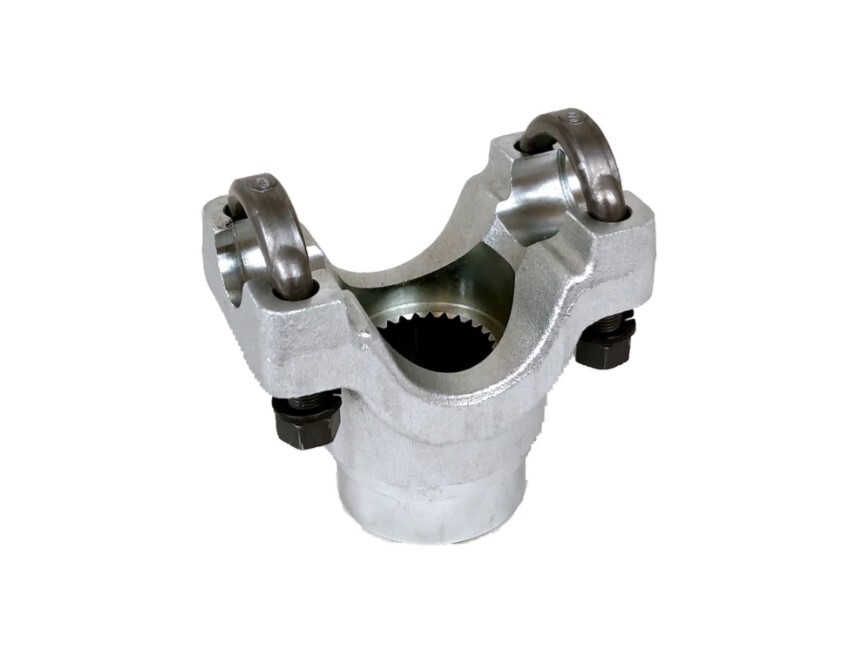

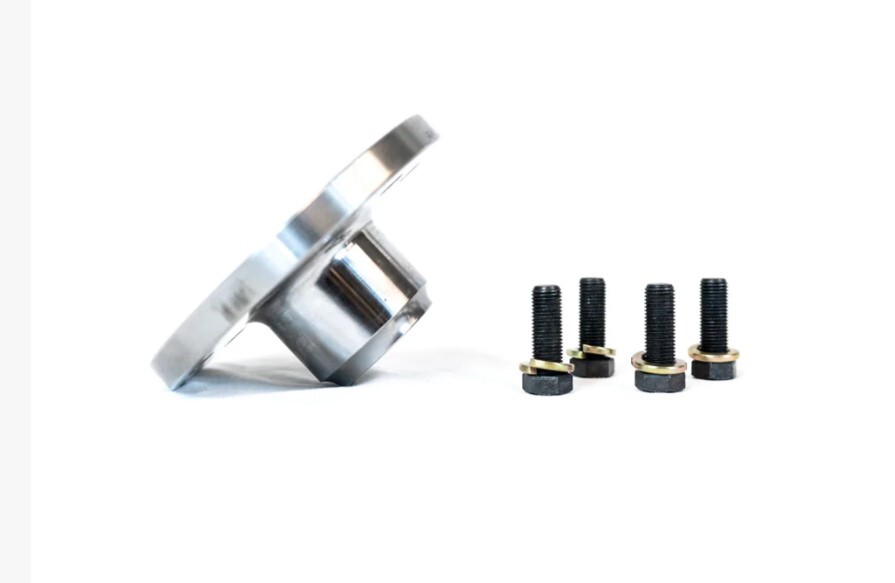

Tom Wood's 1350 series JL rear shaft comes with the required output yoke for the transfer case and the required pinion yoke.

Key product features

  • Double Cardan design. Eliminates problematic CV joints, torn CV boots are a thing of the past.
  • 3" diameter 0.083" wall USA made DOM tube.
  • Forged slip yoke.
  • Greaseable double cardan center ball.
  • Tom Wood's exclusive Gold Seal greaseable universal joints.
  • Comes with required transfer case flange and pinion yoke. (some "cheaper" shafts don't come with these necessary parts which means that you pay more in the long run)
  • Comes with all required attaching hardware.
  • Best of all every shaft can be custom built to whatever length you need. So you can be sure that you will get the right thing the first time around.

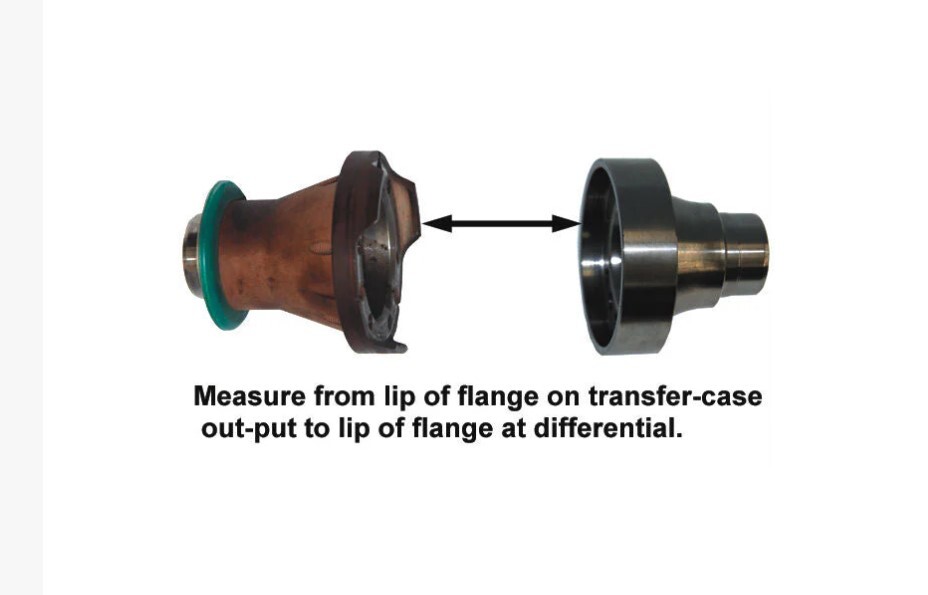

Jeep JL rear drive shaft lengths vary a bit and we want to make sure you get the right thing. That is why we require a length measurement before building the shaft. Measuring is simple and easy. Measure as shown in the photo in the product photos on this page. You can measure with or without the stock shaft installed.

Note: This is to suit Dana 35 (M200) Rear Diff with 24 Spline Yoke

SKU TWJLREAR119535
Brand Tom Woods
Shipping Weight 20.0000kg
Shipping Width 1.500m
Shipping Height 0.160m
Shipping Length 0.160m
Shipping Cubic 0.038400000m3
