JK 4-6" Rear Trail Rate S/T Swaybar Kit

Sold Out


Calculate Shipping

JK 4-6" Front Dual Rate S/T Swaybar Kit

The TeraFlex Trail-Rate ST (Street & Trail) Rear Sway Bar Kit is equivalent to the off-road version of our Dual-Rate ST Front Sway Bar System for the rear of your Jeep.

The “Trail” sway bar provides trail-tuned torsion resistance for off-road driving to control body sway and lean during side hill and off-camber situations with full off-road articulation.

The forged sway bar arms feature several link mounting points to fine tune the torsion rate.

The Trail-Rate ST Rear Sway Bar Kit is s a constant use sway bar and does not have any disconnect or release features.

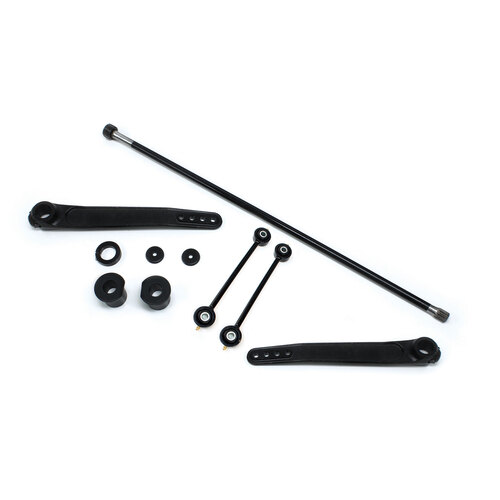

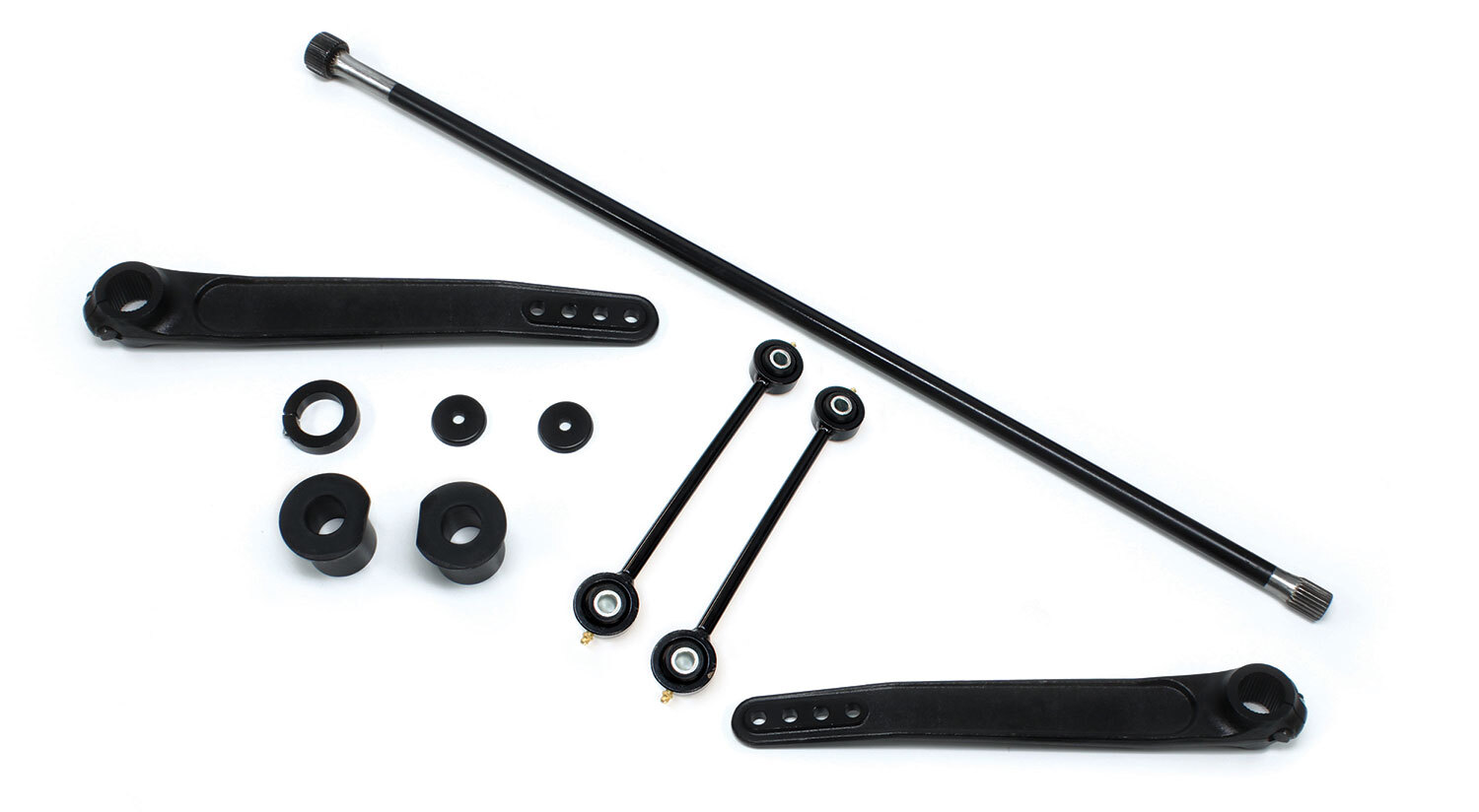

  • JK Wrangler (2-door)
  • JK Wrangler Unlimited (4-door)
  • 4-6” Lift


  • "Trail” Rear Sway Bar
  • Forged Sway Bar Arms – pair
  • Sway Bar Quick Disconnects – pair
  • Sway Bar Bushings
  • All necessary hardware
  • And more

Features: & Benefits:

HD Street-Tuned External Sway Bar

  • Provides more resistance than factory sway bar for superior highway handling and control
  • 35-spline/heat-treated 4130 chromoly

Trail-Tuned Internal Sway Bar

  • Provides the perfect amount of resistance and stability during side hill and off-camber to maintain vehicle control
  • 22-spline/heat-treated 4340 chromoly steel

Internal Bushing Eliminates Wear

  • Internal bushing allows both sway bars to rotate independently in trail setting
  • Eliminates play to maintain tight working tolerances

Forged High-Clearance Arm

  • Allows maximum wheel travel during articulation, eliminates tire/sway bar interference, and increases overall strength – especially side loading

Easy Engagement Knob

  • Ergonomically designed knob
  • Go quickly from street to trail and back
  • Twist clockwise for trail use and counterclockwise for street use


  • This system is intended for trail use only and NOT recommended for street use (does not provide adequate highway anti-roll characteristics).
  • Requires aftermarket wheels w/ 4.5” backspacing or less – or Offset Wheel Adapters (# 1055000) for stock wheels.

Install Time: 4 Hours

SKU TER1754705
Brand Teraflex
Shipping Weight 10.0000kg
Shipping Width 0.400m
Shipping Height 0.400m
Shipping Length 1.200m
Shipping Cubic 0.192000000m3
