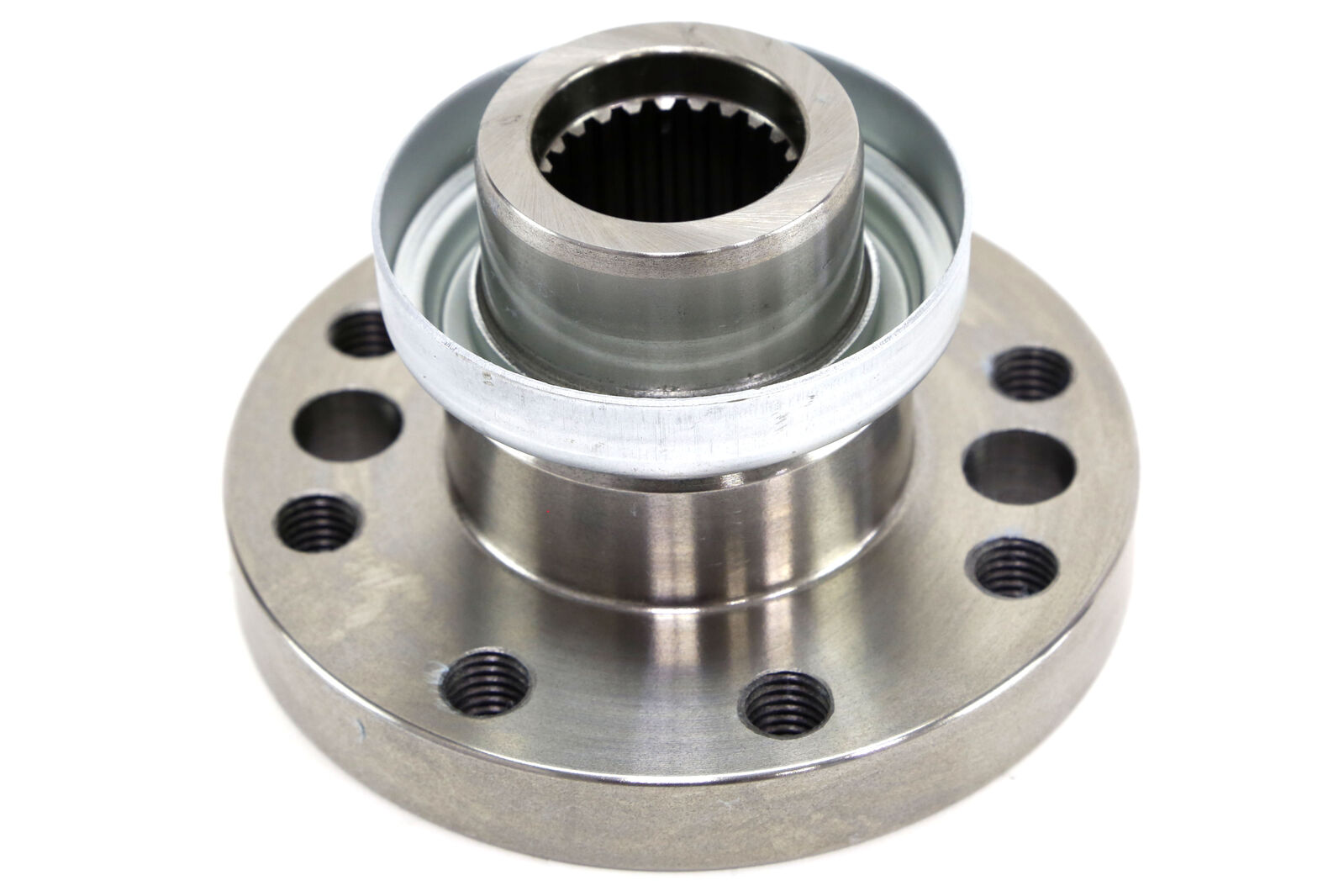

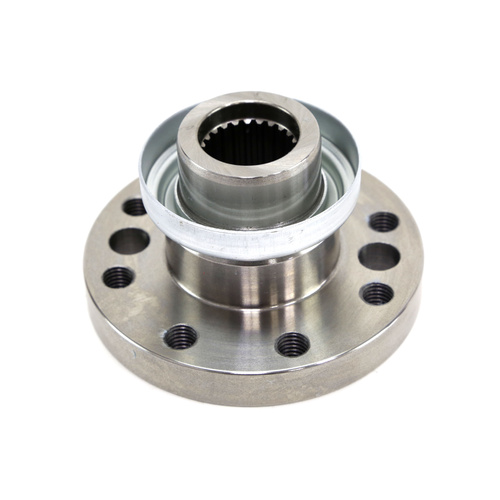

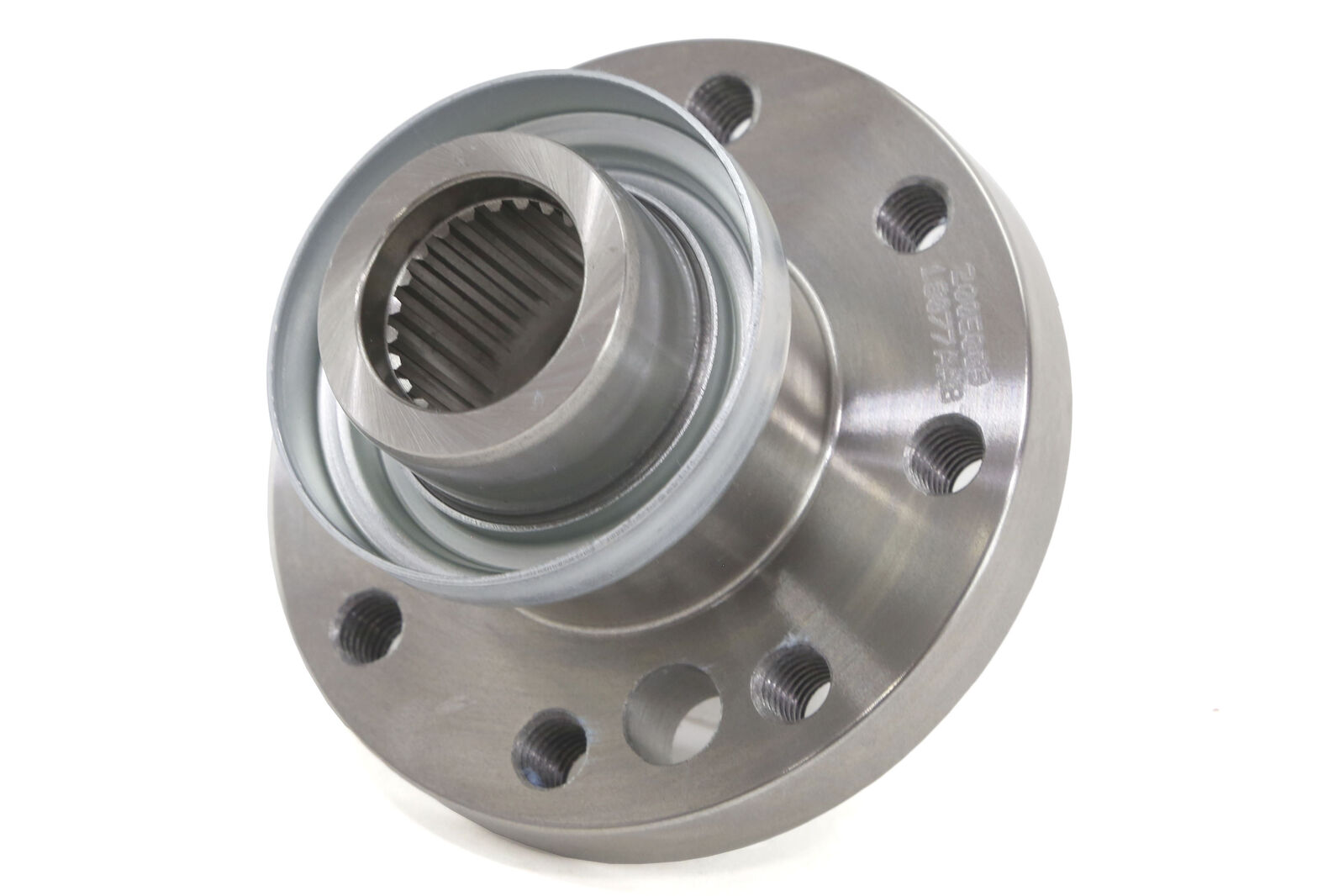

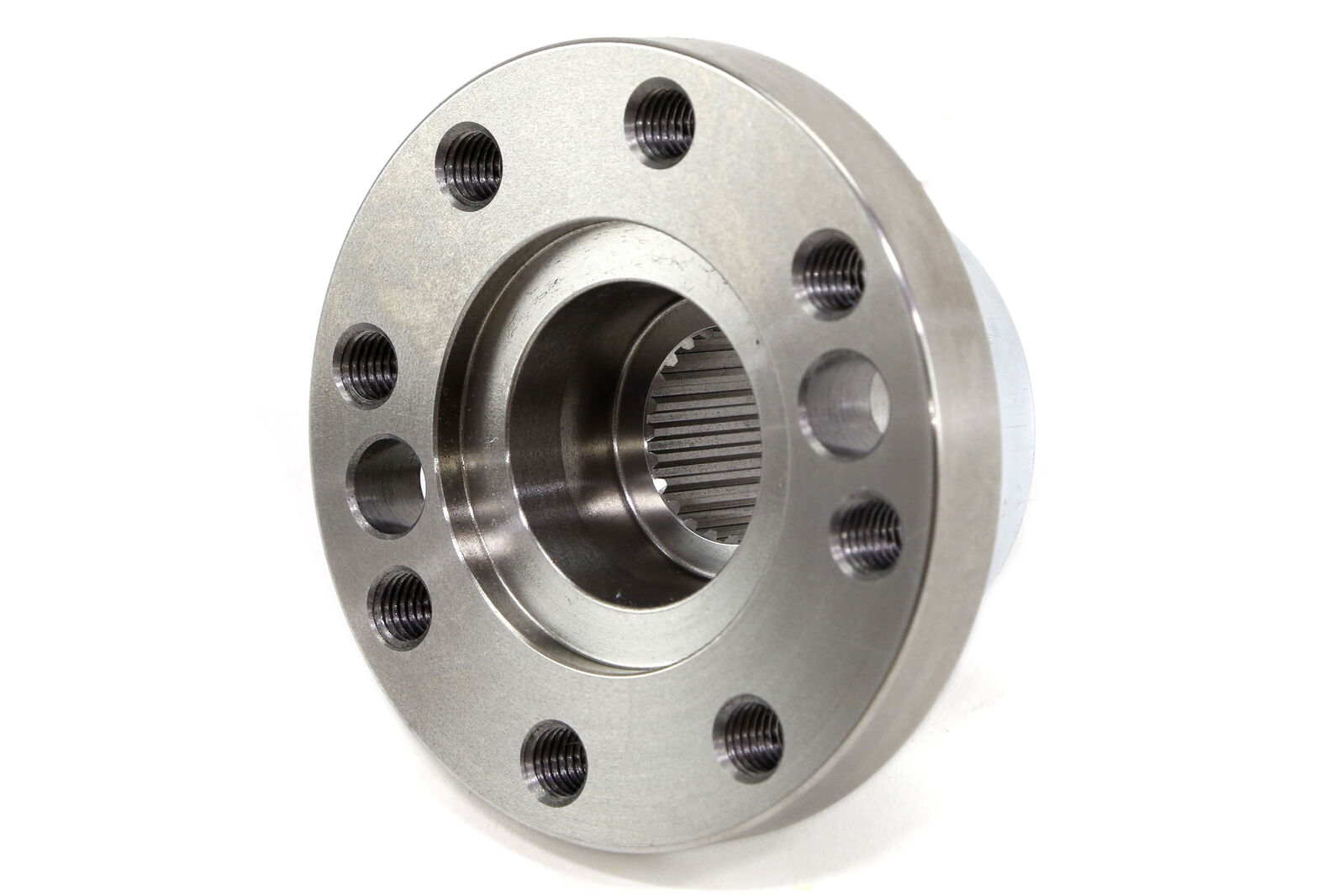

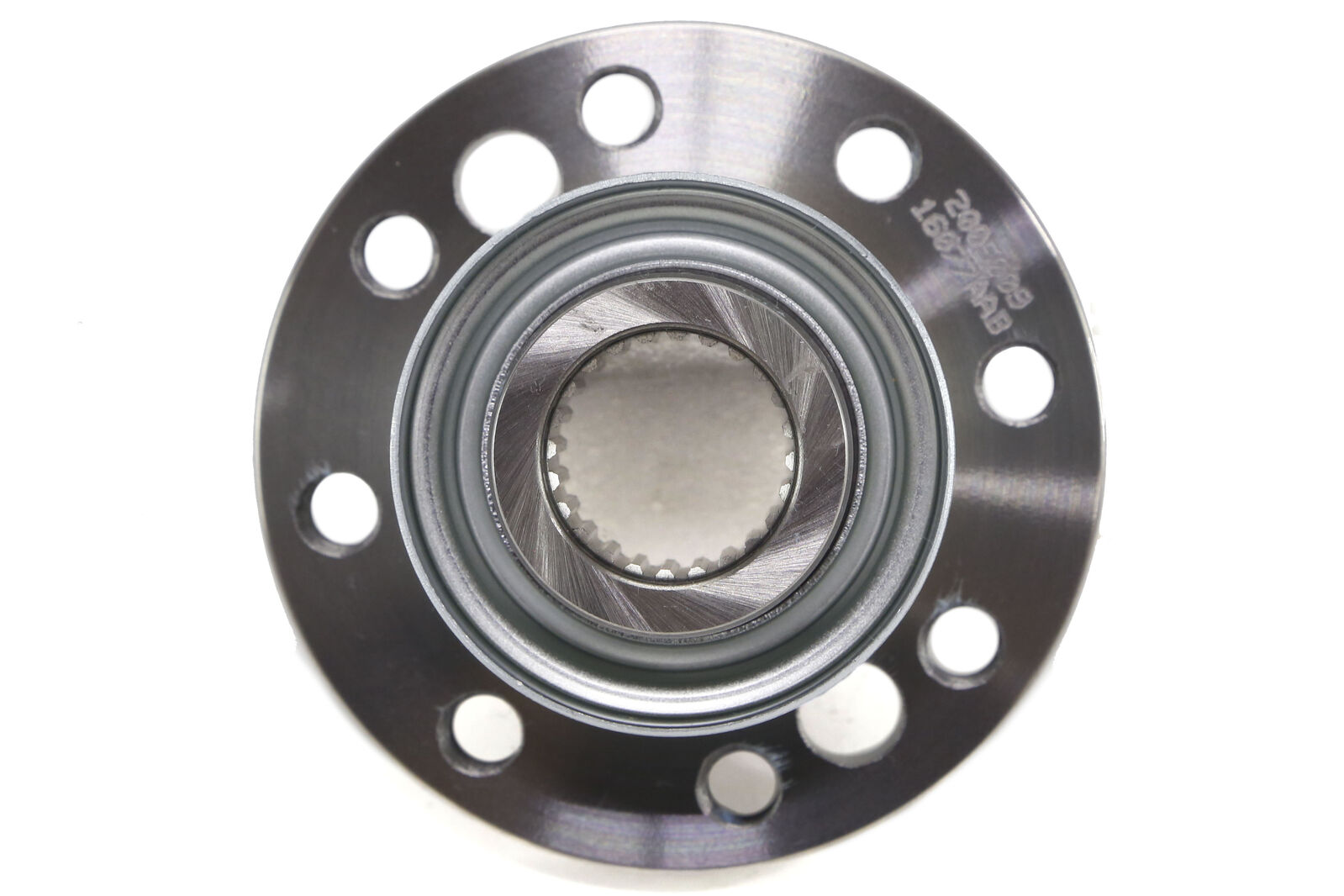

JK Dana 30/44 Front Diff Flange
$175.00
Sold Out
Notify me when back in stock
JK Dana 30/44 Front Diff Flange
Dana Super 30, Dana 44 and Dana Super 44 axles with 24 spline pinions. 2007 - 2018 Jeep Wrangler JK and JKU Dana Super 30 and Dana 44 front axles. Ultimate Dana 44 front axles
- Axle pinion companion flange
- 24 spline
- 2.558" female pilot diameter
- 3.750" bolt circle (measured diagonally)
- 90° / 90° bolt pattern (square pattern)
- 2.652" hole to hole
- 2.652" hole to hole
- 90° / 90° bolt pattern (square pattern)
- 8 bolt holes
- M12-1.75 threads
- 1.845" seal diameter
- Steel dust cover
- Steel
Parts Included:
- (1) flange with steel dust cover
| SKU | DS2005008 |
| Brand | Dana Spicer |
| Shipping Weight | 2.0000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.200m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.008000000m3 |
