TJ/XJ Control Arm Upper Front w Johnny Joint

$625.00
In Stock

Quantity:

Calculate Shipping


TJ Control Arm Upper Front w Johnny Joint

The RockJock® Johnny Joint® Front Upper Control Arm Set for all Jeep® TJ, LJ, XJ, MJ & ZJ models provides you with extremely heavy duty, adjustable length control arms to replace your factory control arms. Adjustable arms are a must for aligning lifted vehicles to get your caster specs. in check!
These arms feature a heavy duty steel fork on the differential end, and RockJock’s 2” Johnny Joints on the frame end.
Johnny Joints, the original and most durable high-articulation urethane suspension joint on the market, feature a smooth steel ball that pivots inside a proprietary urethane shell to provide over 30 degrees (per joint) of quiet, shock dampening articulation - without the excessive deflection found in soft rubber-based “flex joints”. Johnny Joints deliver a smooth, comfortable on-road ride with the ultimate in off-road capability. They are so trusted, that they are used by multiple commercial suspension companies, for both street and off-road suspension systems.
Arms are fully greasable via zerk fitted Grade 8 hardware. Finish is semi-gloss black powder coat.

Kit Fits:

  • Jeep Wrangler TJ – All Models
  • Jeep Wrangler TJ Unlimited (LJ) – All Models
  • Jeep Cherokee XJ – All Models
  • Jeep Comanche MJ – All Models
  • Jeep Grand Cherokee ZJ – All Models

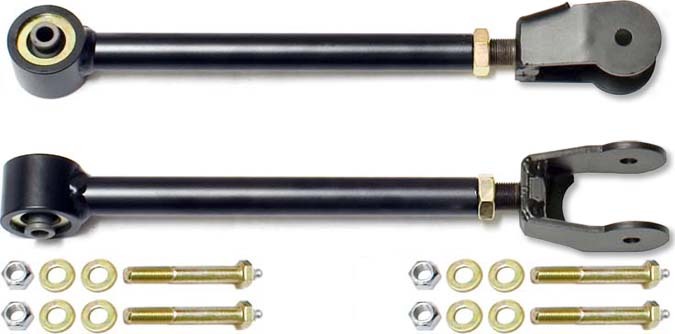

Kit Includes:

  • Johnny Joint Front Upper Control Arms (Pair)
  • (4) 7/16” Greasable Bolts w/ Hardware  -  CE-91127

Adjustment Range:

  • Closed – 14.405”
  • Extended – 15.500”

Notes:

  • Arms are fabricated from 1” x .156” wall DOM steel tubing.
  • Adjuster Forks feature 3/4”-16 RH threads.
  • Installation may require reaming the front differential housing bushing inner sleeves out to 7/16”.
  • Greasable Bolts with hardware are included for all 4 mounting points.
  • Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G.
  • Applicable Johnny Joint Tool for these Control Arms: CE-9112T

Instruction Manual:

SKU RJCE9102
Brand Rock Jock 4x4
Shipping Weight 3.0000kg
Shipping Width 0.640m
Shipping Height 0.050m
Shipping Length 0.140m
Shipping Cubic 0.004480000m3
