Tom Wood JK 1310 Front Drive Shaft - Short

Tom Wood JK 1310 Front Drive Shaft - Short

Jeep JK front drive shaft noise. . . it is a common problem and is inevitable on nearly all lifted Jeep JK Wranglers. It comes down to the design. The stock drive shafts use Rzeppa type CV joints that were designed only to work in stock Jeeps. Two or three inches of lift is enough to cause these CV joints to fail (watch the video below). JK drive shaft rebuild kits just don't cut it. That is why almost all JK drive shaft replacements are upgraded to a double cardan design (a double cardan is also commonly referred to as a cv). The double cardan shaft will handle the angles that your stock drive shaft can not. The double cardan drive shaft is a time tested design that has proven itself in thousands of other Jeeps.

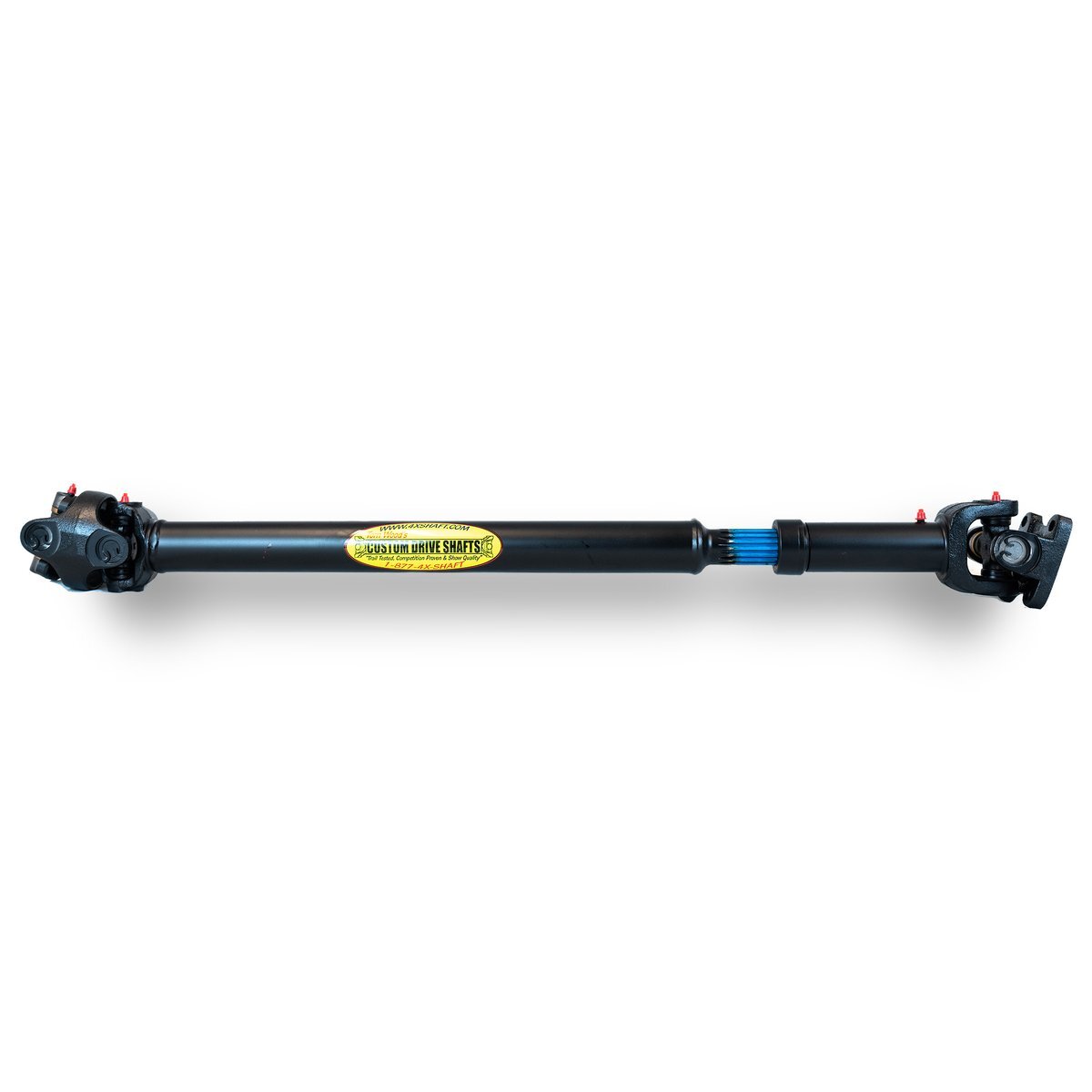

Tom Wood's 1310 series JK front shaft comes with the required output yoke for the transfer case and will bolt directly to your stock pinion flange.

Key product features

• Double Cardan drive shaft design. Eliminates problematic CV joints, torn CV boots are a thing of the past.
• 2" diameter 0.120" wall USA made DOM tube.
• Extra long "X" spline for greater stability and greater range of movement.
• Forged slip yoke.
• Greaseable double cardan center ball.
• Tom Wood's exclusive Gold Seal greaseable universal joints.
• Comes with required transfer case yoke. (some "cheaper" shafts don't come with this yoke which means that you pay more in the long run)
• Comes with new bolts for the double cardan with reduced heads for ease of installation.
• Best of all every shaft can be custom built to whatever length you need. So you can be sure that you will get the right thing the first time around.
