JK RHD HD Tie Rod & Flipped Drag Link Kit

$1,520.00
Sold Out

Quantity:

Calculate Shipping

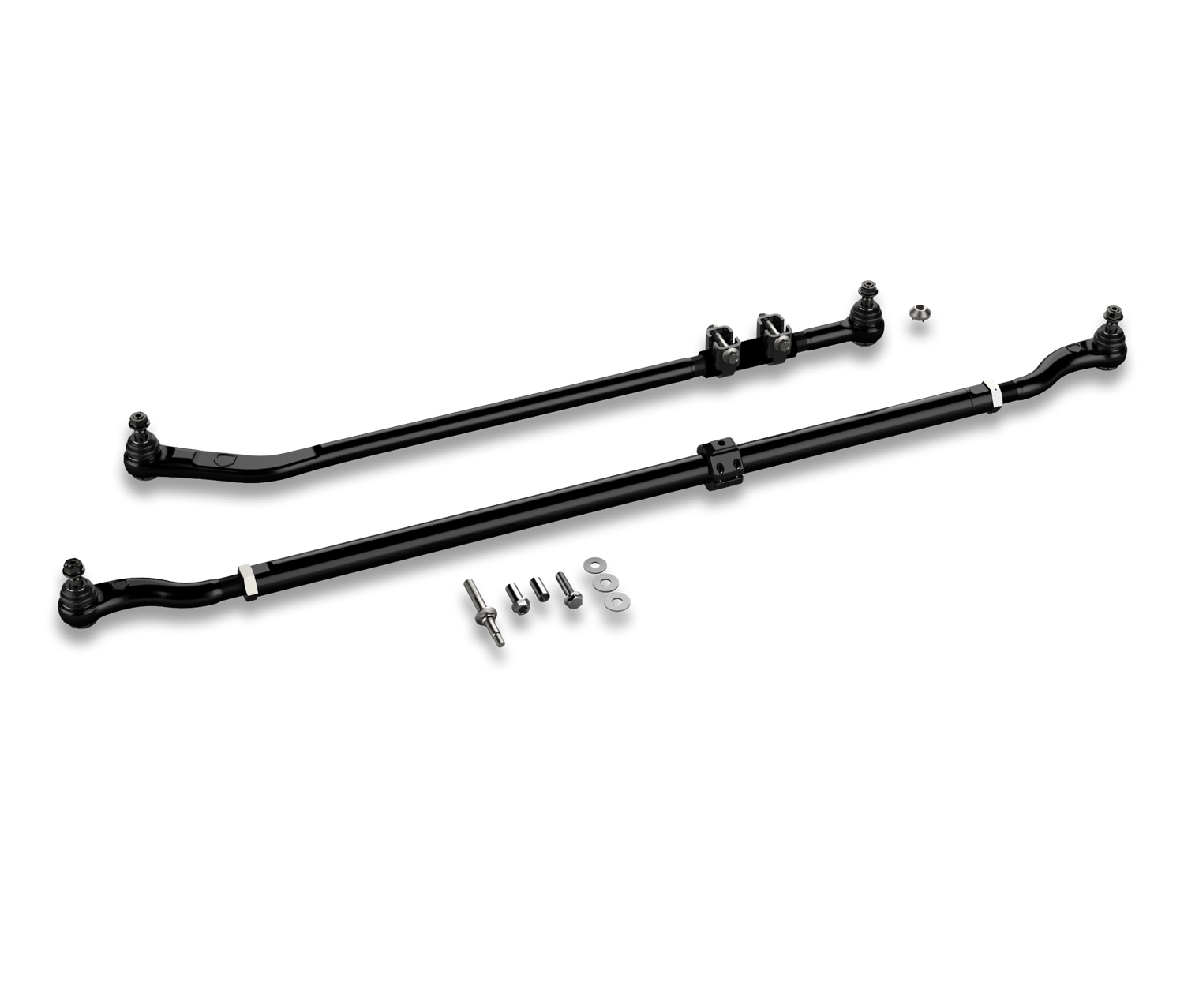

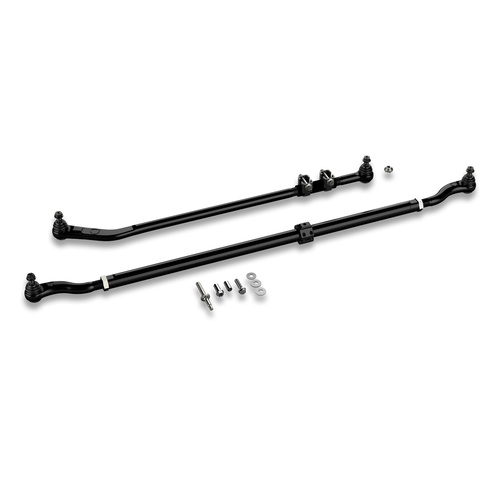

JK RHD HD Tie Rod & Flipped Drag Link Kit

The comes with a flipped drag link that is installed from the top of the steering knuckle for high steer aplications.

The TeraFlex HD Tie Rod & Drag Link Kit is designed for extreme conditions that typically cause factory steering components to bend and fail.

HD Tie Rod Features:

  • HD 1.6” O.D. 4140 heat treated chromoly
  • Over 200% stronger than factory tie rod
  • Forged tie rod end housing designed specifically for JKs
  • Allows proper clearance for use with factory 17” wheels
  • Tie rod end joint incorporates same features found in TeraFlex ball joints, including 4140 chromoly ball/stud and 1045 carbon steel housing
  • Also features adjustable preload tension to ensure proper long term durability
  • Includes the clamp #1123160, or the TeraFlex Steering Stabilizer Relocation Kit The joint is pressed into the rod end housing and secured with a snap ring. When oriented in the Tie Rod configuration, the joint offers a total of 14 degrees movement to minimize tie rod roll, but will still allow maximum turning.

HD Drag Link Features:

  • 1.25” O.D. fully forged drag link eliminates excess movement during hard steering maneuvers
  • Utilizes oversized DOM factory style adjusting collar and pinch clamp for simple adjustments
  • Tie rod end joint incorporates same features found in TeraFlex ball joints, including 4140 chrome moly ball/stud and 1045 carbon steel housing
  • Comes configured 'flipped,' being installed from top of steering knuckle
  • Adjustable preload tension to ensures proper long term durability
  • Joint is pressed into rod end housing and secured with snap ring
  • Fits OEM 17" wheel
SKU TER1853900
Brand Teraflex
Shipping Weight 24.0000kg
Shipping Cubic 0.059584000m3
